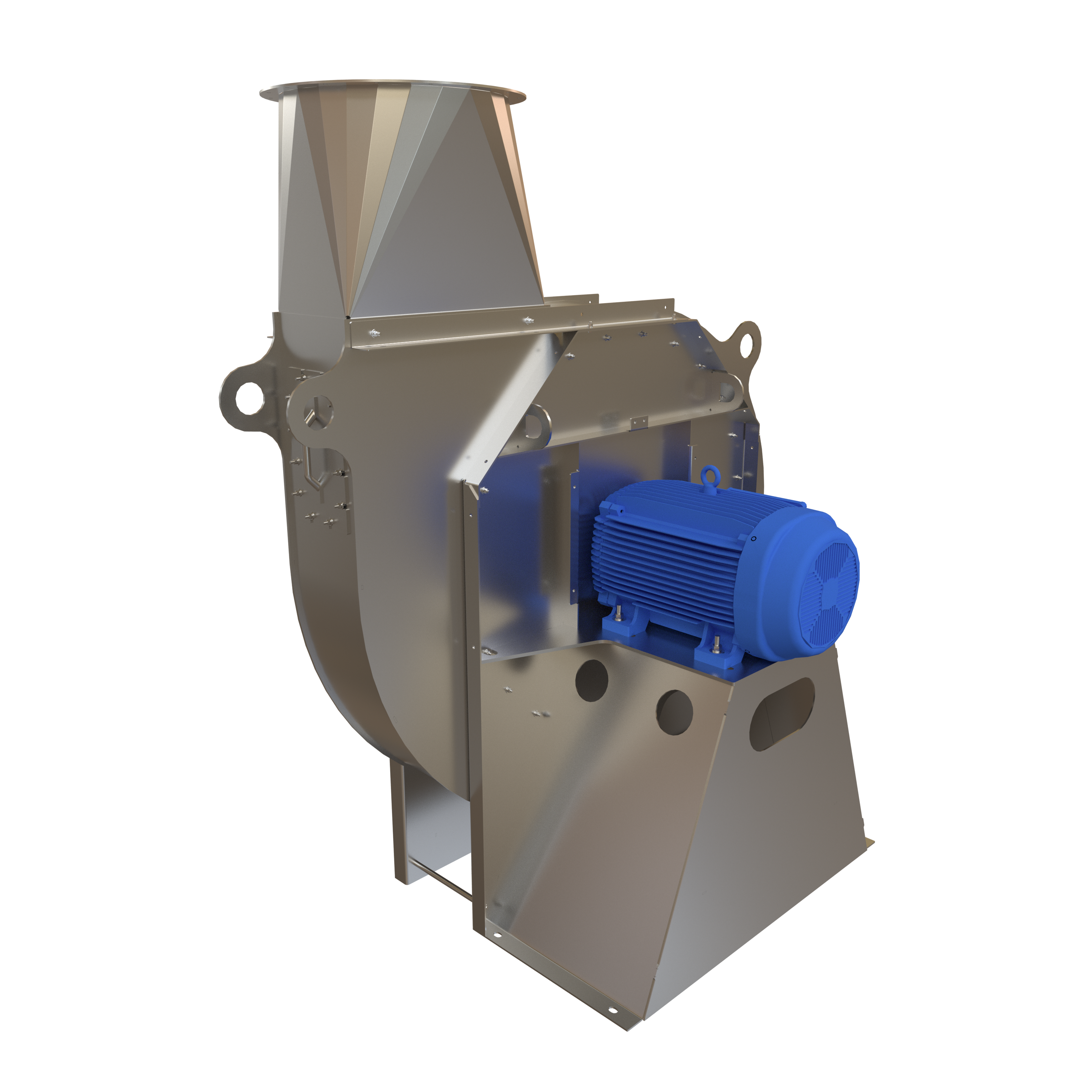

Model HPBC: Backward Curved High Pressure Blower

The Model HPBC Backward Curved High Pressure Blower provides highly efficient performance where a higher pressure to flow ratio is required.

The Model HPBC exhibits non-overloading characteristics typical to BC style wheels and is designed for clean air. This blower is available in mild steel and stainless steel 304 and 316.

It is AMCA C spark resistant construction. For AMCA A/B or split housing availability, please consult the factory.

PERFORMANCE RANGE:

• Static Efficiencies: Up to 78%
• Volume: Up to 96,000 CFM / 163,000 m3/hr
• Static Pressure: Up to 80“ @ 70°F or 20 kPa @ 20°C
• ARR 1 & 8 Standard Design Temperature: Up to 300°F (150°C)
• ARR 4 Standard Design Temperature: Up to 200°F (95°C)
• Maximum Temperature: Up to 750°F (400°C)

FIND A REP

  • DESCRIPTION
  • APPLICATIONS
  • Resources
  • Type – Centrifugal Backward Curved Blades
  • Diameters – 24 to 73 inches / 610 to 1854mm
  • Partial Width – Down to 85% in 5% increments
  • Belt Drive Arrangement 1 with Channel Base up to 250 HP
  • Direct Drive Arrangement 4 up to the 540 size
  • Direct Drive Arrangement 8
  • Combustion air
  • Pressure or vacuum drying
  • Product cooling
  • Ejector air supply
  • Liquid agitation
  • Glass blowing and cooling
  • Water blow-off
  • Air pollution control
  • Exhausting
  • Pneumatic conveying
