Model LM & LMF: Volume Fan
Cincinnati Fan manufactures seven models of cast aluminum volume blowers. Four models are available with cast-on discharge flanges. All models have forward curve wheels (also known as squirrel cage fan wheels) that produce a large volume of air at low noise levels and low horsepower.
Multiple wheel sizes and motor speeds are available for a wide range of performance ratings.
PERFORMANCE RANGE:
• Capacities up to 2,000 CFM and 4″ SPWG
• Standard construction, airstream temperatures up to 150°F (66°C)
• Option high-temperature construction to 300 °F (149° C)
FOR HIGHER CAPACITIES:
Temperature: See Model PB
Pressures or CFM: See Model PB or Model SPB
- FEATURES & BENEFITS
- ARRANGEMENTS
- OPTIONS
- APPLICATIONS
- RESOURCES
Features
Model LM Volume Blowers:
- Cast aluminum blower housing. A rugged appearance is a plus for OEM designers of heavy-duty equipment.
- All models are AMCA Type C spark resistant. With the addition of an aluminum wheel (available in most sizes), LM blowers are AMCA Type B spark resistant.
- Round inlets and discharges allow for easy slip or flanged connections to duct or pipe without the additional cost of square-to-round transitions.
- Arrangement 8 units come standard with shaft/coupling guards.
- Arrangement 9 units come standard with belt guards.
Model LMF Volume Blowers:
- Cast aluminum housing with integral cast discharge flanges for easy direct mounting to motors and cabinets.
- All models are AMCA Type C spark resistant. With the addition of an aluminum wheel (available in most sizes), LMF blowers are AMCA Type B spark resistant.
Benefits
- Spark Resistant: Model LM & LMF are standard with cast aluminum blower housings and steel, multivane wheels making them AMCA Type C spark resistant. With the addition of an aluminum wheel (available on most models), they become AMCA Type B spark resistant. Much less expensive than fabricated aluminum fans.
- Easy Pipe or Duct Connections & Mountings: LM Models have round inlets and discharges for easy slip or flanged connections to duct or pipe. They don’t require expensive square-to-round transitions. This also allows for easy flexible hose connections. LMF Models have integral cast-on discharge flanges making it easy to mount to cabinets, motors, frames, etc. Expensive mountings are not required.
- Attractive: Cast aluminum’s natural appearance adds to the aesthetics of the equipment it is mounted on. Provides a rugged appearance and it can be brushed, buffed, or colored by anodizing. It also has excellent paint adhesion. Excellent esthetics for OEM designers at no extra cost.
9 Standard Arrangements
![Arrangement 1](/wp-content/uploads/2024/05/Arrangement-1-LM.png)

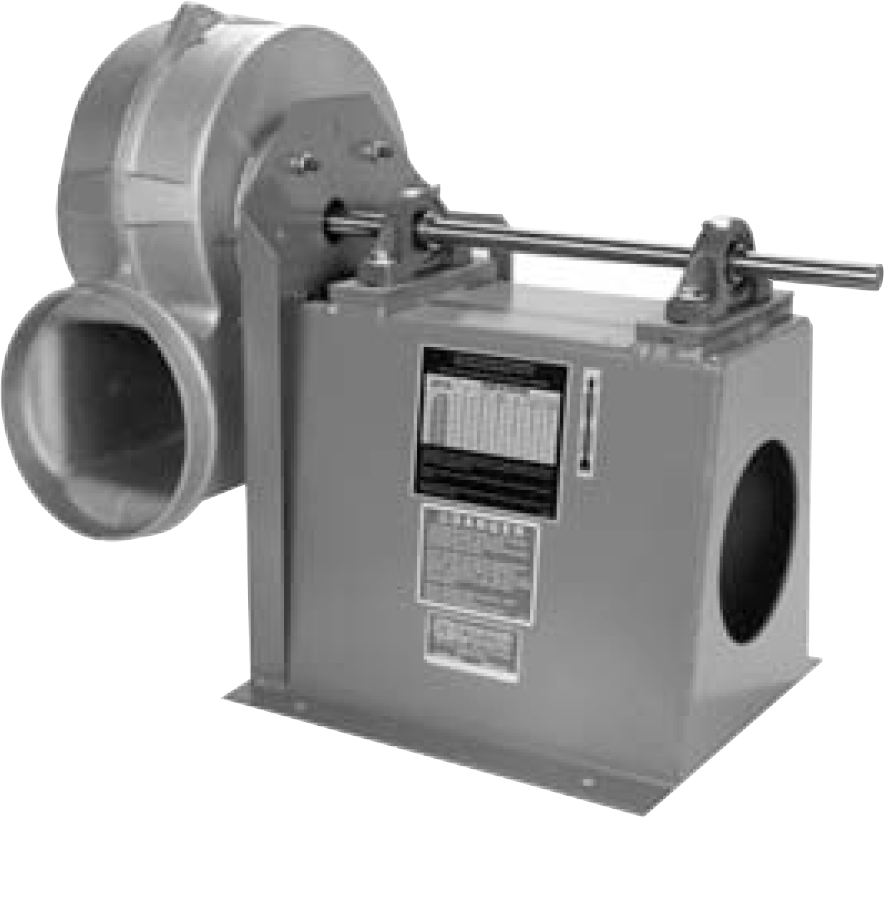

Arrangement 1
![Arrangement 2](/wp-content/uploads/2024/05/Arrangement-2-LM.png)
Arrangement 2
![Arrangement 4 (Foot and flange motor)](/wp-content/uploads/2024/05/Arrangement-4-LM-FF.png)
Arrangement 4 (Foot and flange motor)
![Arrangement 4 (Foot mounted motor)](/wp-content/uploads/2024/05/Arrangement-4-LM-foot-mounted.png)
Arrangement 4 (Foot mounted motor)
![Arrangement 4 (Flange mount footless motor)](/wp-content/uploads/2024/05/Arrangement-4-LM-Flange-mount-footless.png)
Arrangement 4 (Flange mount footless motor)
![Arrangement 4HM](/wp-content/uploads/2024/05/Arrangement-4HM-LM.png)
Arrangement 4HM
![Arrangement 4D](/wp-content/uploads/2024/05/Arrangement-4D.png)
Arrangement 4D
![Arrangement 8](/wp-content/uploads/2024/05/Arrangement-8-1.png)
Arrangement 8
![Arrangement 9](/wp-content/uploads/2024/05/Arrangement-9-2.png)
Arrangement 9
4 Sizes of LMF Models
![LMF-3](/wp-content/uploads/2024/05/Model-LMF3.png)
LMF-3
![LMF-4](/wp-content/uploads/2024/05/Model-LMF4.png)
LMF-4
![LMF-6](/wp-content/uploads/2024/05/Model-LMF6.png)
LMF-6
![LMF-8](/wp-content/uploads/2024/05/Model-LMF8.png)
LMF-8
![Inlet Filter](/wp-content/uploads/2024/03/Inlet-Filter.png)
Inlet Filter
![Shaft and/or Heat Slinger Guard](/wp-content/uploads/2024/03/Shaft-and_or-Heat-Slinger-Guard-1.png)
Shaft and/or Heat Slinger Guard
![Teflon Shaft Seal](/wp-content/uploads/2024/03/Teflon-Shaft-Seal.png)
Teflon Shaft Seal
![Inlet/Outlet Flange](/wp-content/uploads/2024/05/inletoutlet-flange-option.png)
Inlet/Outlet Flange
![Slide Gate Damper](/wp-content/uploads/2024/05/slide-gate-damper.png)
Slide Gate Damper
![Inlet/Outlet Guard](/wp-content/uploads/2024/05/inlet-gd.png)
Inlet/Outlet Guard
![Drain](/wp-content/uploads/2024/05/drain-1.png)
Drain
![Standard steel wheel for LMF-3, LM-4, LMF-4, LM-6 and LMF-6](https://dev-cinfan.pantheonsite.io/wp-content/uploads/2024/05/wheel-1.png)

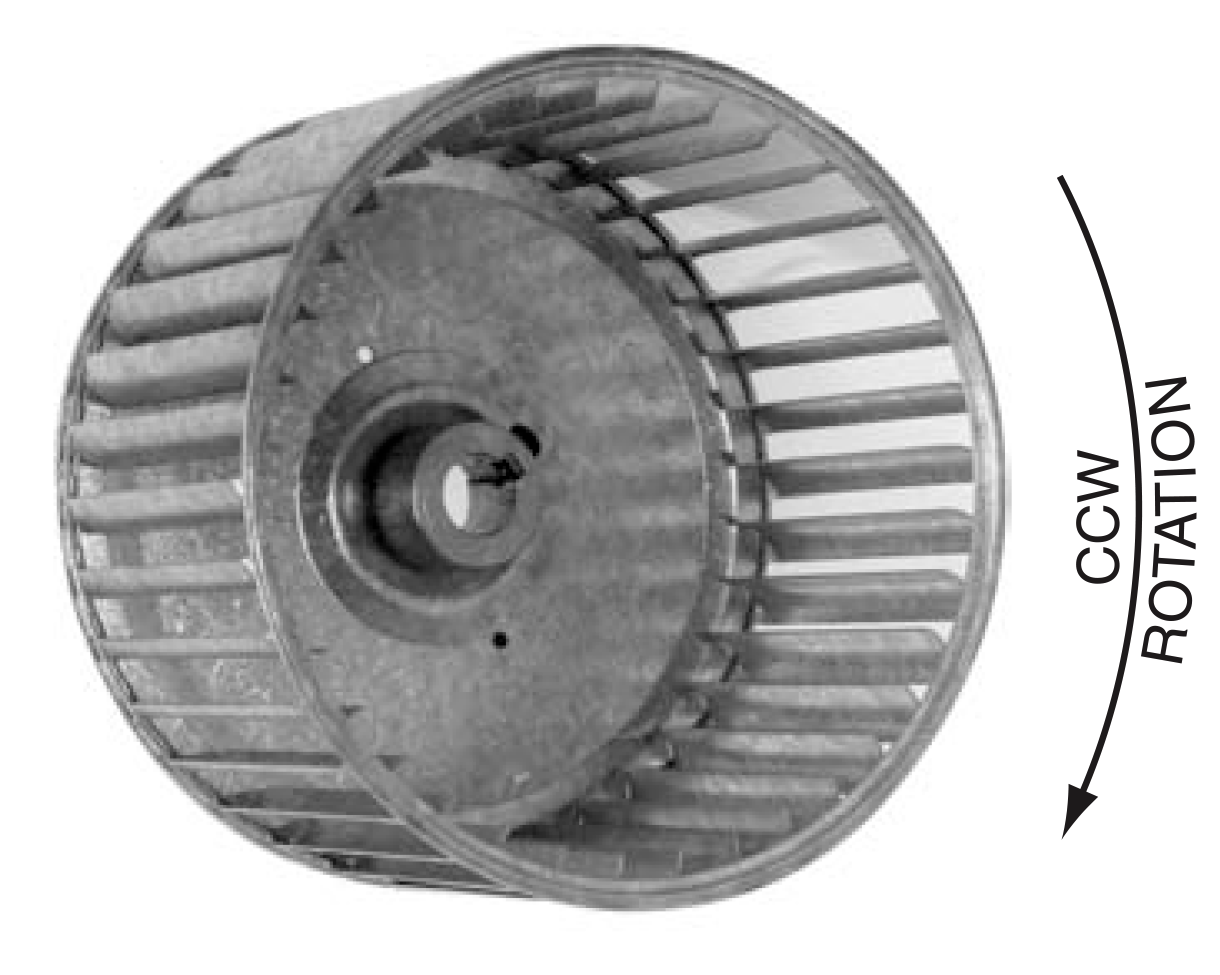

Standard steel wheel for LMF-3, LM-4, LMF-4, LM-6 and LMF-6
![Standard steel wheel for LM-8 and LMF-8 wheel](/wp-content/uploads/2024/05/wheel-2.png)
Standard steel wheel for LM-8 and LMF-8 wheel
- Forced cooling of AC and DC motors
- Ink drying
- Combustion air
- Electrical enclosure cabinet ventilation
