Model RTE: Radial Tip Exhauster
Radial Tip Exhauster With Static Efficiencies Up To 73%
The Model RTE Radial Tip Exhauster provides highly efficient performance for applications in clean and dirty air systems. This radial tip exhauster exhibits self-cleaning blade characteristics typical to radial bladed wheels.
It is available in mild steel, stainless steel 304 and 316, or AR400 abrasive resistant steel. For AMCA C construction, split housing or unitary base options, please consult the factory.
PERFORMANCE RANGE:
• Static Efficiencies: Up to 73%
• Volume: Up to 240,000 CFM / 408,000 m3/hr
• Static Pressure: Up to 35“ @ 70°F or 9 kPa @ 20°C
• Standard Design Temperature: Up to 300°F (150°C)
• Maximum Temperature: Up to 750°F (400°C)
- DESCRIPTION
- ARRANGEMENTS
- APPLICATIONS
- RESOURCES
• Type – Centrifugal Radial Tip Curved Blades
• Diameters – 24 to 73 inches / 610 to 1854mm
• Partial Width – Down to 50% in 5% increments
• Belt Drive Arrangement 1 with Channel Base up to 250 HP
• Direct Drive Arrangement 8
![Arrangement 1](/wp-content/uploads/2024/06/A1.png)
Arrangement 1
![Arrangement 8](/wp-content/uploads/2024/03/Arrangement-8-Direct-Drive.png)
Arrangement 8
![Arrangement 9CB](/wp-content/uploads/2024/05/Arrangement-8-belt-guard-removed.png)
Arrangement 9CB

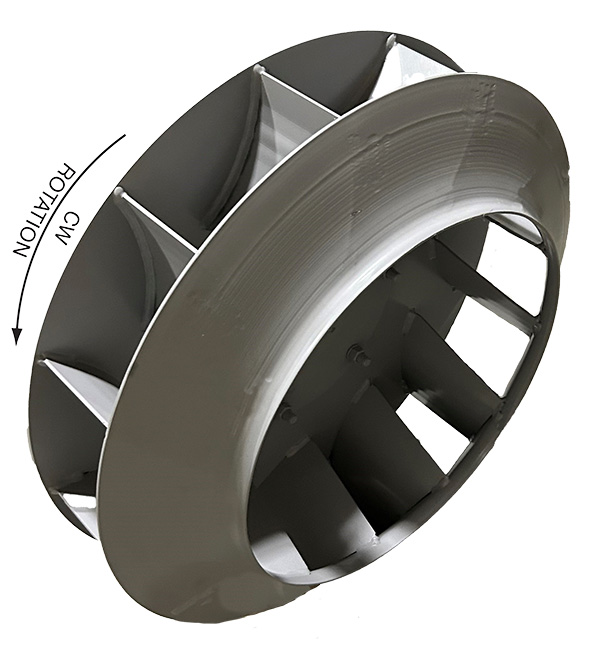

![Radial Tip Wheel](/wp-content/uploads/2024/05/Radial-Tip-Wheel.png)
Radial Tip Wheel
• Precipitators
• Scrubbers
• Cyclones
• Incinerators
• Kiln exhaust
• Dryers
• Cement
• Furnaces and ovens
• Solvent recovery
